2x8 Hydraulic Cylinder - 2" Bore 8" Stroke Double Acting Welded Clevis Hydraulic Cylinder (2x8)

A Welded Clevis Hydraulic Cylinder is a heavy-duty actuator commonly used in industrial and mobile applications. Its welded end caps provide a compact, durable design with fewer leak points, making it ideal for harsh environments. The clevis mount on one or both ends allows for easy pivoting connections to machinery. Key Features: Construction: Welded body for strength and compactness Mounting: Clevis-style mounts for flexible, pivoting movement Porting: Equipped with SAE (Society of Automotive Engineers) ports, ensuring: Standardized hydraulic connection Leak-free, high-pressure performance Easy integration with hydraulic hoses and fittings Applications: Widely used in agriculture, construction equipment, and industrial machinery

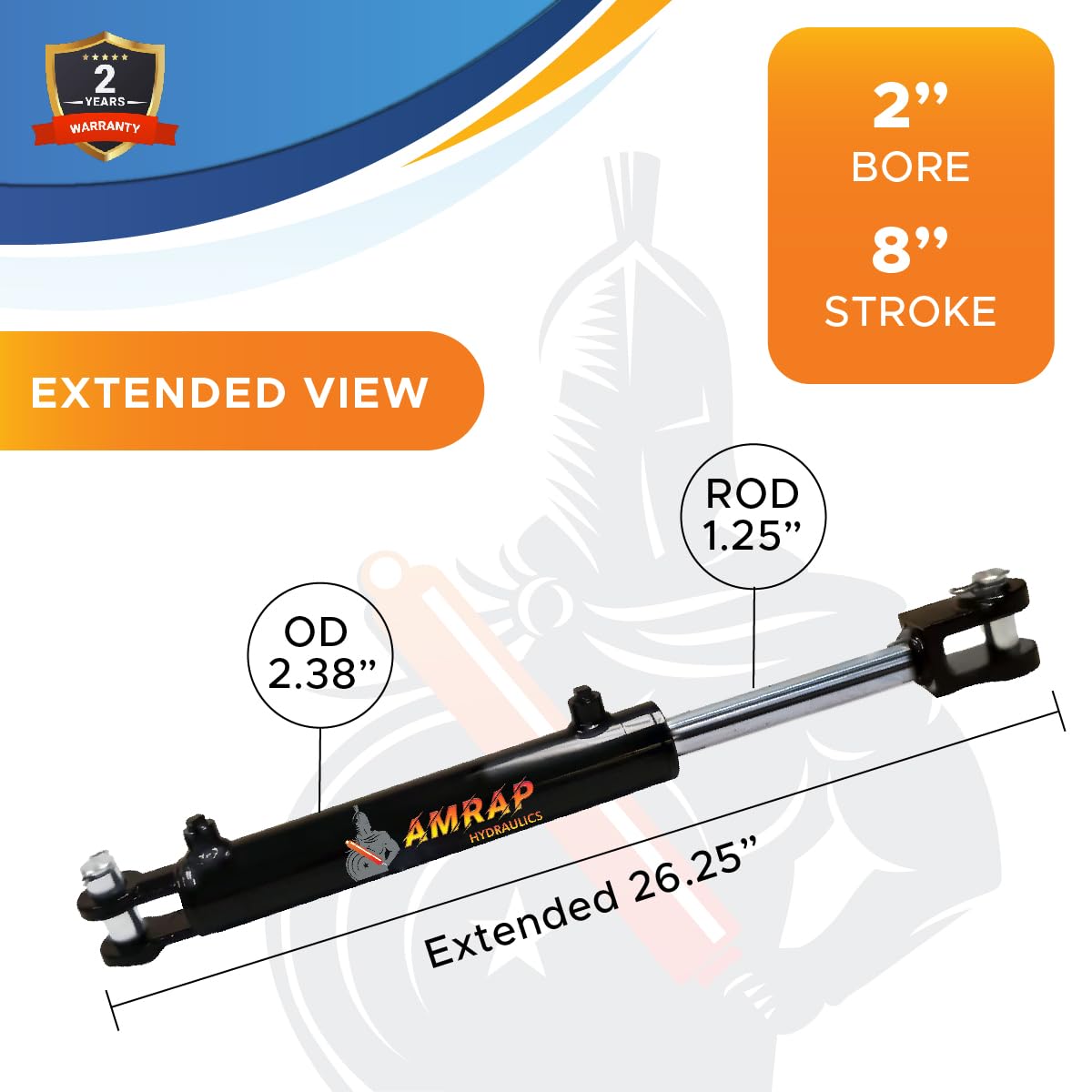

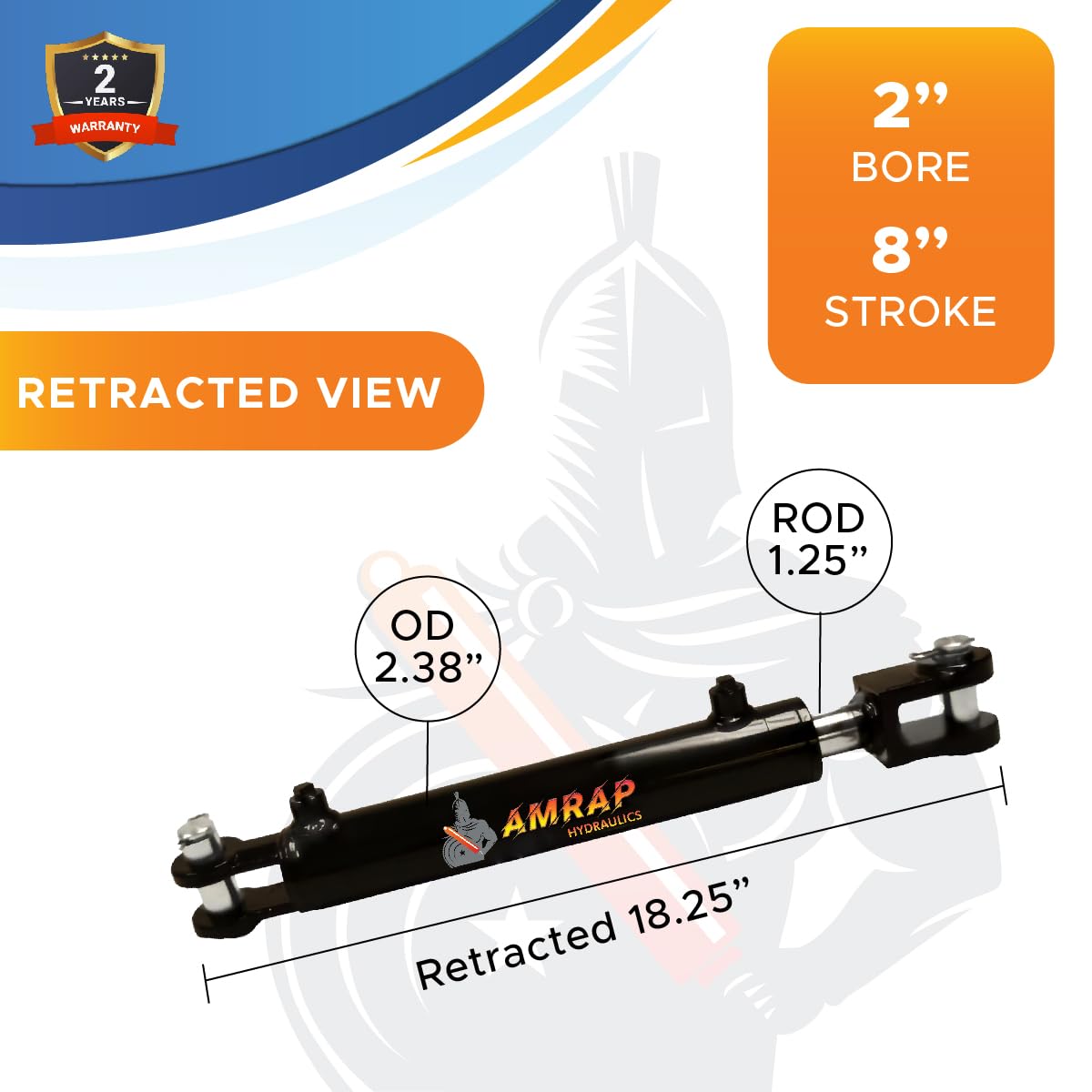

• Bore 2" (OD 2.38"), Stroke8" Rod:1.125, Retracted: 18.25" , Extended: 26.25" , Pin holes: 1"
• With a rated pressure of 3000 PSI, this equipment features SAE #6 ports (Female Pipe) and boasts a column load capacity of 9,420 pounds (lbs).
• Applications of double-acting hydraulic cylinders with welded clevis ends are widespread and include industrial machinery, agricultural equipment, construction machinery, and more. They are commonly used in applications such as lifting, pushing, pulling, bending, and holding loads
• This is the main component of the system. It consists of a cylindrical barrel, a piston, and a piston rod. The piston divides the inside of the cylinder into two chambers: one on the rod side and one on the opposite side.
• The clevis end is a mounting point on the cylinder. It's typically welded onto the cylinder body and provides a secure attachment point for connecting the cylinder to other components of the system, such as machinery, frames, or other hydraulic equipment.
